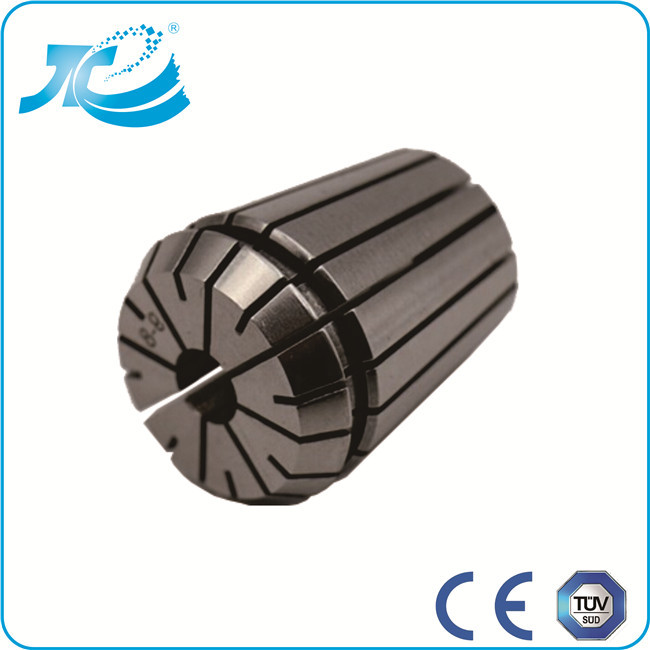

Diameter 33mm ER32 Collet , CNC Machine Collets with 40mm Length

Product Categories

Dongguan Diamond Hardware Factory

Contact Now

Diameter 33mm ER32 Collet , CNC Machine Collets with 40mm Length

Brand Name : JT

Model Number : ER

Certification : CE,TUV

Place of Origin : China

MOQ : 20pcs

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200,000pcs per month

Delivery Time : 5 working days after received your payment

Packaging Details : Each products packed with bubble and then Putted in carton firstly,finally reinforced with wooden case for outer packing

Product Name : Spring ER Collet ER32 , CNC Machine Collets

Model No. : ER32

Diameter : 33mm

Length : 40mm

HRC : 62-65

Customizable : YES

Contact Now

Diameter 33mm ER32 Collet , CNC Machine Collets with 40mm Length

Description

1, Material: 65Mn

2, Hardness: HRC46-50;
3, Precision: 0.005,0.008mm;
4, Collet inner hole,groove,end and the cylindrical are grinding many times, can reach Ra0.4.
5, collet groove use grinding process,suitable for high speed machining.
6, Two looks provide:polishing and chemical nickle-plating processing.
7, Cleaness better,Accuracy stable,Surface more smooth,Feel comfortable,Appearance nice.

Dongguan Diamond Hardware Company Limited was founded in 2010,which is the most professional Solid Carbide Tool manufacturer. We specialize in designing,developing and manufacturing various of precision indexable cutting tools. We also produce the customization products according to customers’ demands,such as Aerospace,Medical,Automotive,Mechanical,Mold & Die,Electronic Industries and customized tool. No matter what application or industry you are serving,we are sure that Diamond can offer you the most suitable and outstanding quality tools with competitive price.

Collect must be assembled into the clamping nut before inserting into the chuck.

Specifications:

Metric Size
Model No.	D	L	d	Weight(Kg)
ER08	8.5	13.5	1,1.5,2,2.5,3,3.5,4,4.5,5	0.01
ER11	11.5	18	1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7	0.01
ER16	17	27	1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,	0.03
			7.5,8,8.5,9,9.5,10
ER20	21	31	1,1.5,2,2.5,3,3.5,4,4.5,5,5.5,6,6.5,7,	0.04
			7.5,8,8.5,9,9.5,10,10.5,11,11.5,12,
			12.5,13
ER25	26	35	2,3,4,5,6,7,8,9,10,11,12,13,14,15,16	0.07
ER32	33	40	2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,	0.15
			17,18,19,20
ER40	41	46	3,4,5,6,7,8,9,10,11,12,13,14,15,16,	0.27
			17,18,19,20,21,22,23,24,25,26
ER50	52	60	12,14,16,18,20,22,24,26,28,30,32,34	0.45

Inch Size
Model No.	D	L	d	Weight(Kg)
ER11	11.5	18	1/8,5/32,3/16,7/32,1/4	0.01
ER16	17	27	1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,	0.03
			3/8
ER20	21	31	1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,	0.04
			3/8,13/32,7/16,1/2
ER25	26	35	1/8,5/32,3/16,7/32,1/4,9/32,5/16,11/32,	0.07
			3/8,13/32,7/16,1/2,9/16,19/32,5/8
ER32	33	40	1/8,5/32,3/16,7/32,1/4,5/16,11/32,3/8,	0.15
			13/32,7/16,1/2,17/32,9/16,19/32,5/18,
			21/32,11/16,3/4,25/32
ER40	41	46	1/8,5/32,3/16,1/4,9/32,5/16,3/8,7/16,	0.27
			15/32,1/2,9/16,5/8,19/32,11/16,23/32,
			3/4,25/32,13/16,27/32,7/8,15/16,31/32,1

ER08		ER11		ER16		ER20
NO.	Range	NO.	Range	NO.	Range	NO.	Range
ER08-01	1.0-0.5	ER11-01	1.0-0.5	ER16-01	1.0-0.5	ER20-01	1.0-0.5
ER08-1.5	1.5-1.0	ER11-1.5	1.5-1.0	ER16-1.5	1.5-1.0	ER20-1.5	1.5-1.0
ER08-02	2.0-1.5	ER11-02	2.0-1.5	ER16-02	2.0-1.5	ER20-02	2.0-1.5
ER08-2.5	2.5-2.0	ER11-2.5	2.5-2.0	ER16-2.5	2.5-2.0	ER20-2.5	2.5-2.0
ER08-03	3.0-2.5	ER11-03	3.0-2.5	ER16-03	3.0-2.5	ER20-03	3.0-2.5
ER08-3.5	3.5-3.0	ER11-3.5	3.5-3.0	ER16-3.5	3.5-3.0	ER20-3.5	3.5-3.0
ER08-04	4.0-3.5	ER11-04	4.0-3.5	ER16-04	4.0-3.5	ER20-04	4.0-3.5
ER08-4.5	4.5-4.0	ER11-4.5	4.5-4.0	ER16-4.5	4.5-4.0	ER20-4.5	4.5-4.0
ER08-05	5.0-4.5	ER11-05	5.0-4.5	ER16-05	5.0-4.5	ER20-05	5.0-4.5
		ER11-5.5	5.5-5.0	ER16-5.5	5.5-5.0	ER20-5.5	5.5-5.0
		ER11-06	6.0-5.5	ER16-06	6.0-5.5	ER20-06	6.0-5.5
		ER11-6.5	6.5-6.0	ER16-6.5	6.5-6.0	ER20-6.5	6.5-6.0
		ER11-07	7.0-6.5	ER16-07	7.0-6.5	ER20-07	7.0-6.5
				ER16-7.5	7.5-7.0	ER20-7.5	7.5-7.0
				ER16-08	8.0-7.0	ER20-08	8.0-7.0
				ER16-8.5	8.5-8.0	ER20-8.5	8.5-8.0
				ER16-09	9.0-8.0	ER20-09	9.0-8.0
				ER16-9.5	9.5-9.0	ER20-9.5	9.5-9.0
				ER16-10	10-9.0	ER20-10	10-9.0
						ER20-10.5	10.5-10
						ER20-11	11-10
						ER20-11.5	11.5-11
						ER20-12	12-11
						ER20-12.5	12.5-12
						ER20-13	13-12
ER25		ER32		ER40		ER50
NO.	Range	NO.	Range	NO.	Range	NO.	Range
ER25-02	2.0-1.0	ER32-02	2.0-1.0	ER40-03	3.0-2.0	ER50-12	12-10
ER25-03	3.0-2.0	ER32-03	3.0-2.0	ER40-04	4.0-3.0	ER50-14	14-12
ER25-04	4.0-3.0	ER32-04	4.0-3.0	ER40-05	5.0-4.0	ER50-16	16-14
ER25-05	5.0-4.0	ER32-05	5.0-4.0	ER40-06	6.0-5.0	ER50-18	18-16
ER25-06	6.0-5.0	ER32-06	6.0-5.0	ER40-07	7.0-6.0	ER50-20	20-18
ER25-07	7.0-6.0	ER32-07	7.0-6.0	ER40-08	8.0-7.0	ER50-22	22-20
ER25-08	8.0-7.0	ER32-08	8.0-7.0	ER40-09	9.0-8.0	ER50-24	24-22
ER25-09	9.0-8.0	ER32-09	9.0-8.0	ER40-10	10-9.0	ER50-26	26-24
ER25-10	10-9.0	ER32-10	10-9.0	ER40-11	11-10	ER50-28	28-26
ER25-11	11-10	ER32-11	11-10	ER40-12	12-11	ER50-30	30-28
ER25-12	12-11	ER32-12	12-11	ER40-13	13-12	ER50-32	32-30
ER25-13	13-12	ER32-13	13-12	ER40-14	14-13	ER50-34	34-32
ER25-14	14-13	ER32-14	14-13	ER40-15	15-14
ER25-15	15-14	ER32-15	15-14	ER40-16	16-15
ER25-16	16-15	ER32-16	16-15	ER40-17	17-16
		ER32-17	17-16	ER40-18	18-17
		ER32-18	18-17	ER40-19	19-18
		ER32-19	19-18	ER40-20	20-19
		ER32-20	20-19	ER40-21	21-20
				ER40-22	22-21
				ER40-23	23-22
				ER40-24	24-23
				ER40-25	25-24
				ER40-26	26-25
